BFX-100 Truck Weigh Scale – Mobile Wheel Load Scale

SKU: BFX-100

Mobile truck wheel load scale with 10,000kg capacity per scale. Wireless radio transmission, aluminium alloy construction, LCD display.

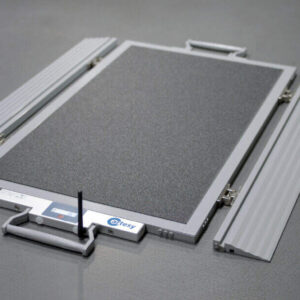

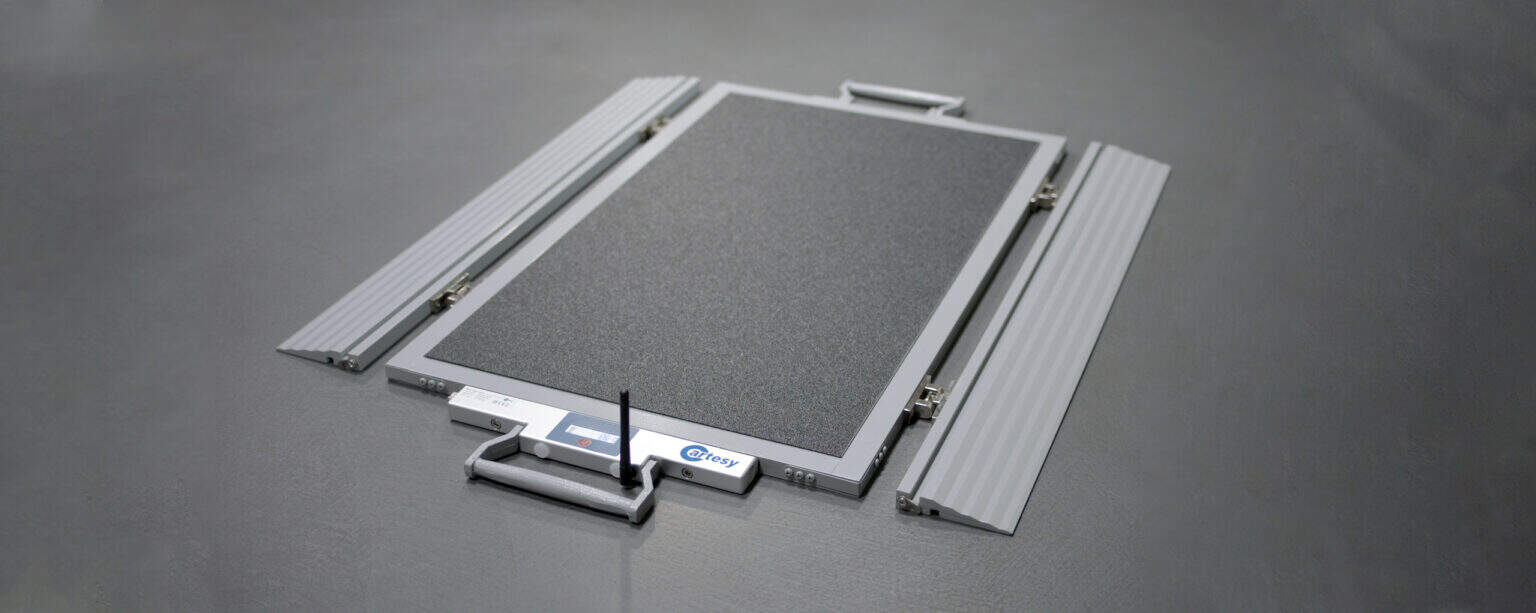

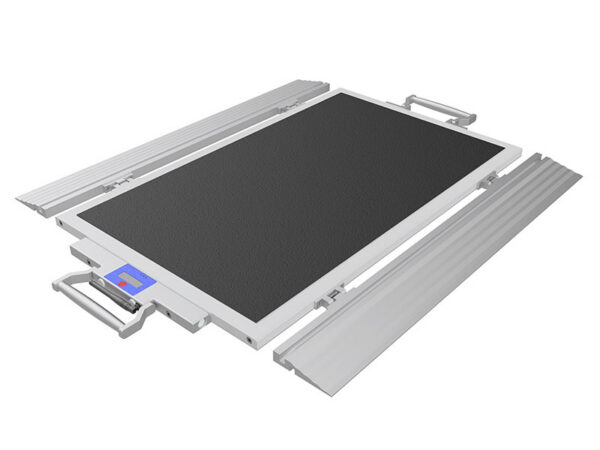

BFX-100 portable truck wheel load scale for mobile vehicle weighing

Description

The mobile truck scale BFX-100-LCD-F is a reliable instrument for weighing trucks, commercial vehicles and agricultural machinery. This truck scale is capable of calculating wheel, axle, and vehicle loads and can be used both indoors and outdoors.

With its strong, lightweight aluminium alloy housing and integrated LCD with backlighting display, the BFX-100-LCD-F is the perfect choice for measuring truck and trailer loads.

With the BFX-100-LCD-F, operators can easily check overflows or determine the centre of gravity of a vehicle. The wheel and axle weight scale can easily identify any incorrect loading or unloading of a vehicle, thereby reducing the risk of an accident.

This wheel load scale is suitable for weighing trucks, trailers, and other light to heavy vehicles with a load capacity of up to 10,000kg.

The BFX-100-LCD-F is designed for use by up to ten scales simultaneously, thanks to the functionally reliable radio data transmission. This radio system enables the measurement results to be quickly and accurately transmitted to a desktop computer, laptop device, smartphone, or mobile hand-held terminal.

The elegant Aluminum alloy construction ensures the long-term durability of the BFX-100-LCD-F scale. This material is both temperature and humidity resistant and requires much less maintenance than other materials. The LCD display is backlit for easy visibility in dark environments. Furthermore, this scale requires absolutely no calibration whatsoever and is extremely accurate.

Additionally, the truck scale is also suitable for agricultural use like checking the load distribution on tractors and other agricultural vehicles.

Key Features

  • Digital, wireless weight pad
  • Measuring range: 0 – 10,000 kg
  • Available with digit step of d = 1kg, 2kg, 5kg, 10kg
  • Battery powered (power supply included)
  • Large weighing area for twin wheels
  • Suitable for truck & commercial weighing (Drive-on/Drive-off ramps included)
  • Fail-safe industry standard radio transmission (433MHz)
  • Mobile and stationary application
  • Weighing result readable from built-in 8-digit LCD display (with backlight)
  • Radio-connected group configurable from up to 10 scales
  • Aluminium Alloy construction
  • Handheld Terminal (optional accessory)
  • PC Radio Connection (optional accessory)
  • Compatible with inno!weight PC software
  • Made in Germany

Additional information

Measuring range

0 – 10,000 kg

Accuracy

< 0.5% full scale

Net Weight

21 kg approx. (including ramps)

Height

20 mm

Division

2 kg

Material

Aluminium Alloy

External Dimensions

L 955mm x W 725mm x H 20mm

Weighing Surface

L 715mm x W 420mm

inno!weight app

iOS, Android and Windows

Power Supply

Lithium-Polymer Battery

Power Adapter

230V AC / 5V DC (USB to 5-pin Connector)
