CM245-A – 2 Post Symmetrical Car Hoist 4.5tonne

SKU: CM245-A

Electro-hydraulic symmetrical car hoist with 4.5 tonne lifting capacity. This two post vehicle hoist is suitable for vehicle repair and maintenance.

Molnar CM245-A 4.5 tonne 2 post symmetrical car hoist

Description

The Molnar CM245-A two post car hoist is a symmetrical 4.5 tonne electro-hydraulic two post vehicle hoist available with 3 phase or optional single phase motor power.

This hoist is suitable for vehicle repair and maintenance within industrial, commercial, and even domestic workshops.

The double telescopic arm length makes the CM245-A hoist one of the most versatile on the market, suitable for the smallest of cars through to large SUVs.

Key Features

  • Clear floor (no base frame)
  • Unique single post symmetric column design for greater stability
  • Single hydraulic unit
  • Carriage with slide blocks
  • Push button control unit with upper protection limit
  • Park button and direct down functionality
  • Mechanical synchronisation
  • Safety ratchet system (no expensive compression air required)
  • Automatic arm locking system
  • Low minimum height
  • Double telescopic front and rear arms
  • 105° arm swing; eases pad positioning
  • Suitable for small passenger cars through to SUVs
  • 3 year warranty

Additional information

Lifting Capacity

4500 kg
Vehicle Type

,

Work Type

, ,

Workshop Constraint

,

Lifting Height

1990 mm
Working Height

90 mm – 1990 mm
Lifting/Lowering Time

30 seconds (approx.)
Motor Unit

3 kW
Voltage

3 Phase 50 Hz 7 Amps / 1 Phase 50 Hz 20 Amps
Minimum Height

90 mm
Drive-through Width

2484 mm
Total Width

3434 mm
Total Height

4050 mm
Arm Length (Front)

600 – 1250 mm
Arm Length (Rear)

600 – 1250 mm

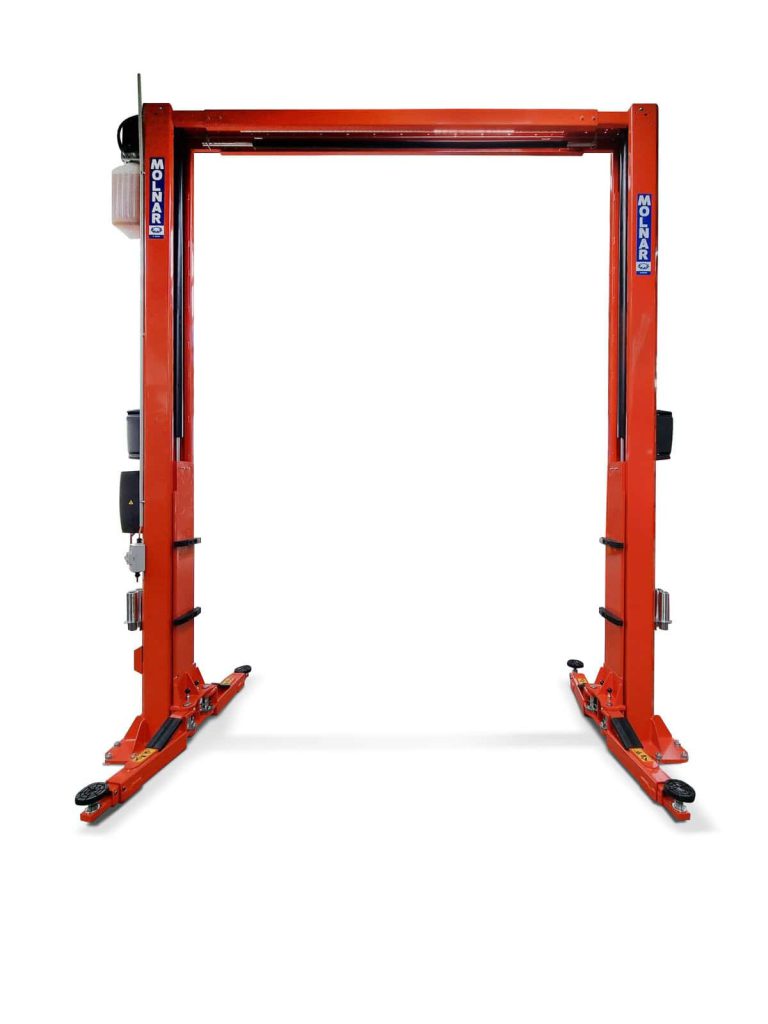

Molnar CM245-A 4.5 tonne 2 post symmetrical car hoist

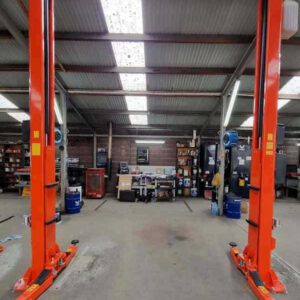

CM245-A 2 post symmetrical hoist with 4500kg capacity

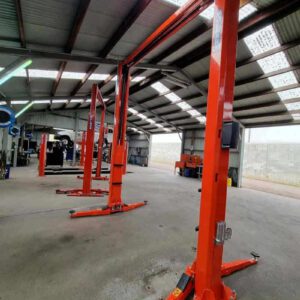

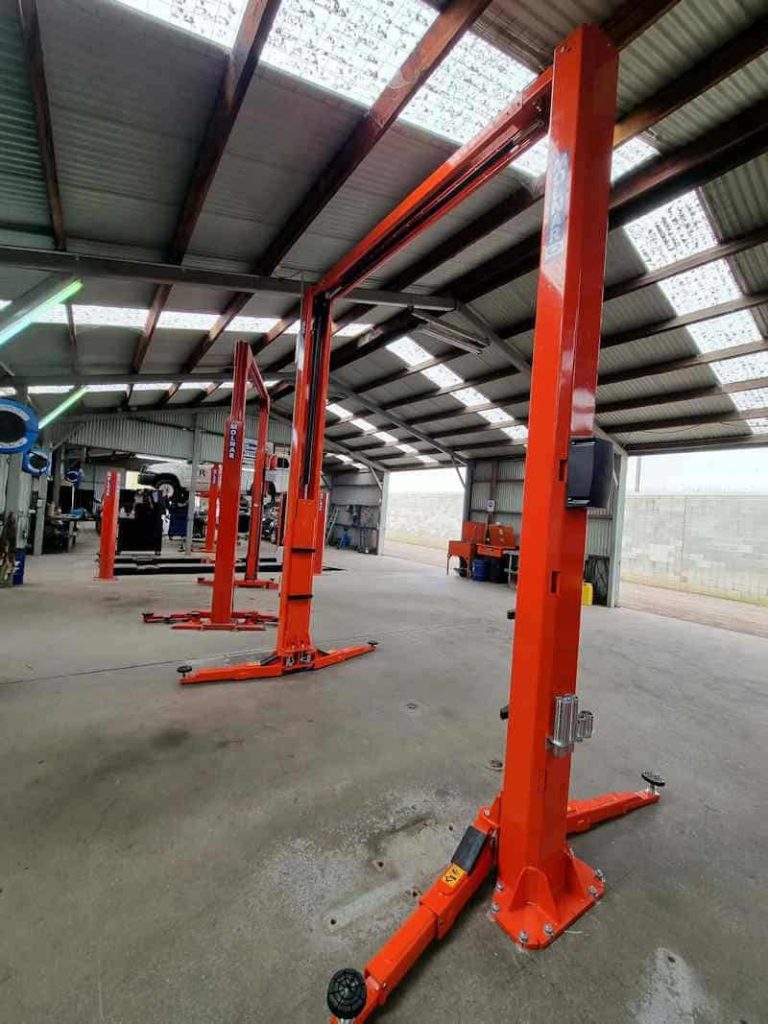

CM245-A 2 post hoist showing arm positioning

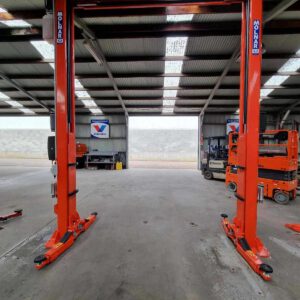

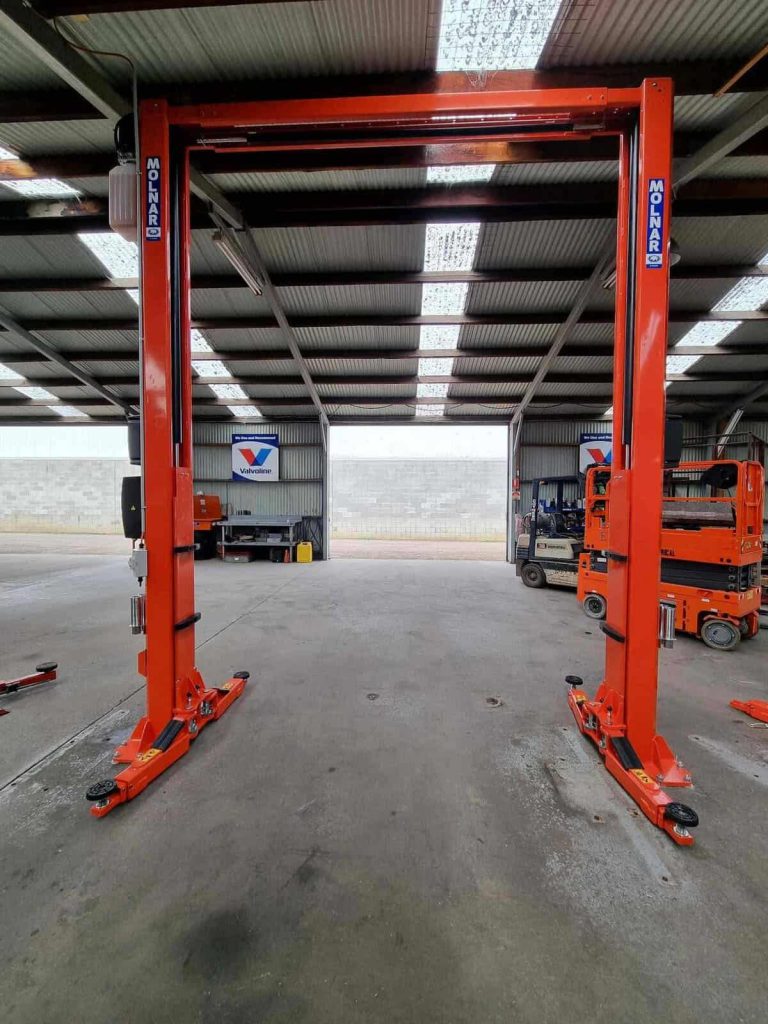

CM245-A 2 post hoist installed in service bay

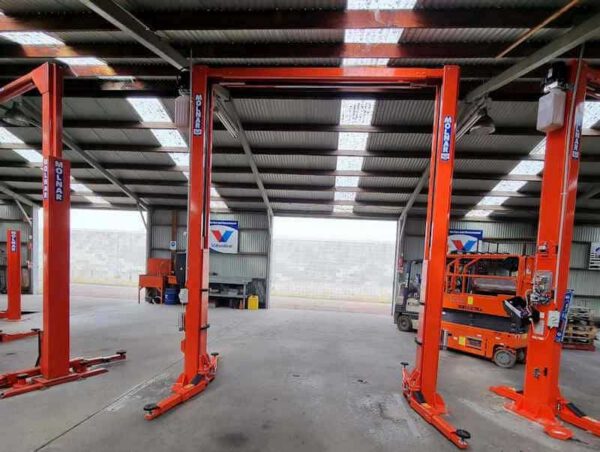

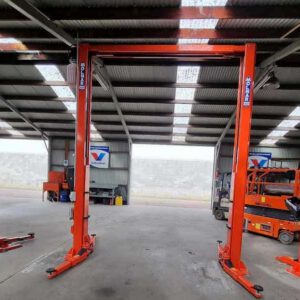

CM245-A 2 post hoist overhead arm clearance view
Molnar CM245-A 4.5 tonne 2 post symmetrical car hoistCM245-A 2 post symmetrical hoist with 4500kg capacityCM245-A 2 post hoist showing arm positioningCM245-A 2 post hoist installed in service bayCM245-A 2 post hoist overhead arm clearance view
