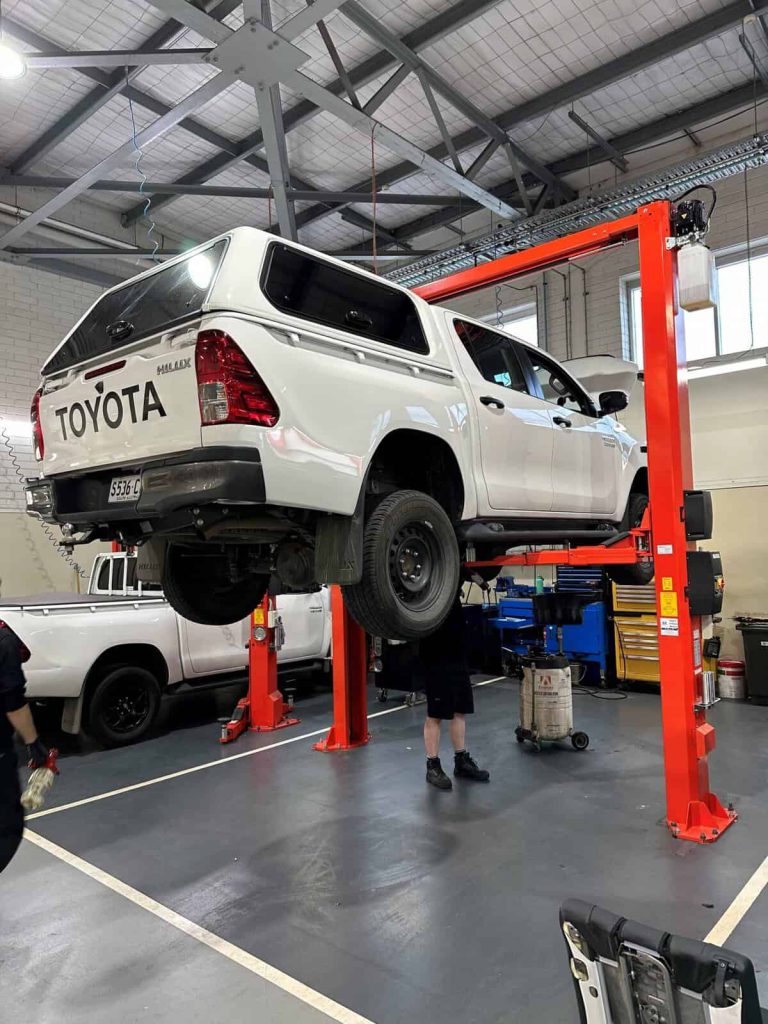

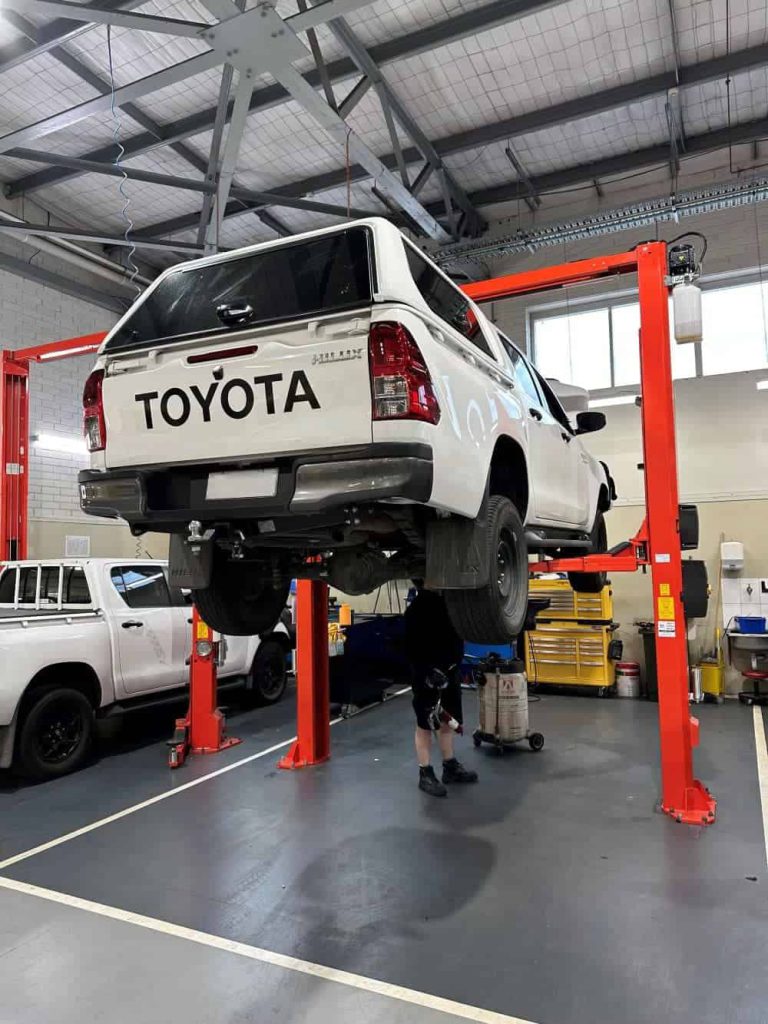

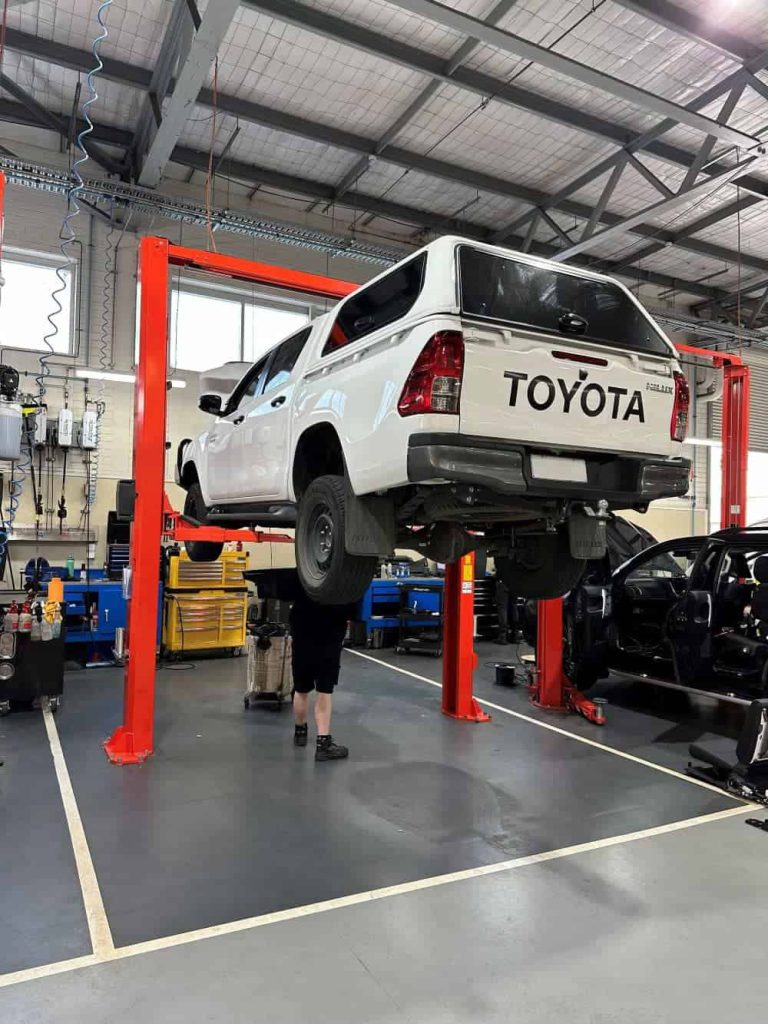

Molnar CM255-A is a 2 post symmetrical car hoist suitable for vehicle repair and maintenance. Can lift cars and vans up to 5.5 tonne.
The Molnar CM255-A two post car hoist is a symmetrical 5.5 tonne electro-hydraulic two post vehicle hoist available with 3 phase or optional single phase motor power. This hoist is suitable for passenger cars up to big vans and transporters. The double telescopic arms make the CM255-A suitable for passenger cars up to large vans and transporters.
| Lifting Capacity | 5500 kg |
|---|---|
| Lifting Height | 2005 mm |
| Working Height | 105 mm – 2005 mm |
| Lifting/Lowering Time | 50 seconds (approx.) |
| Motor Unit | 3 kW |
| Voltage | 3 Phase 50 Hz 16A (single phase available) |
| Minimum Height | 105 mm |
| Drive-through Width | 2810 mm |
| Total Width | 3920 mm |
| Total Height | 4050 mm |
| Arm Length (Front) | 915 – 1850 mm |
| Arm Length (Rear) | 915 – 1850 mm |
| Vehicle Type | |
| Work Type | |
| Warranty | 3 years (maintenance contract required to validate) |
| Spare Parts | Stocked locally in Australia, 24 working hour dispatch |
| Drive-through Width | 2,898 mm |
| Lifting Height | 1,990 mm |
| Total Width | 3,920 mm (outer edges base plates) |
