CM5500 – Wheel Alignment Scissor Hoist 5.5t

SKU: CM5500

5.5 tonne wheel alignment platform scissor hoist for cars to large SUVs.

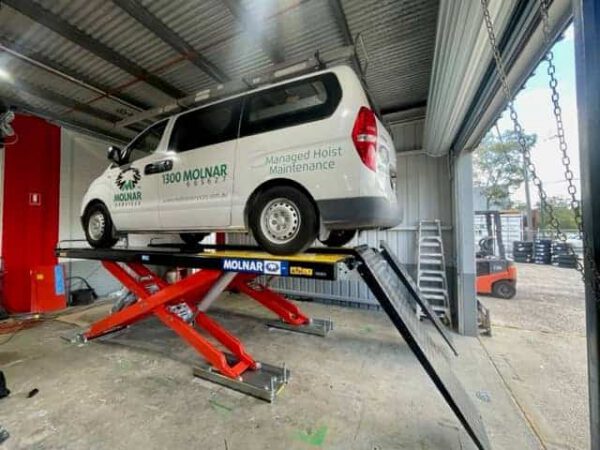

Molnar CM5500 5.5 tonne wheel alignment scissor hoist lift

Description

The Molnar CM5500-A and CM5500-AL are 5.5 tonne electro-hydraulic platform scissor hoists suitable for wheel alignment and service work, available in 3-phase power.

This hoist is suitable for vehicle repair and maintenance within industrial, commercial, and even domestic workshops.

With a 4.6m and 5.2m platform length model available, the CM5500-A/AL hoists are one of the most versatile on the market, suitable for the smallest cars through to large SUVs.

Key Features

  • Double master & slave hydraulic system
  • Control box with push buttons, integrated pump unit and alarm signal
  • Emergency lowering valves can be manually opened
  • Sturdy scissor construction for high directional stability
  • Ramps made from tear plates, for easy drive-on with wet wheels
  • Automatic leveling system with master/slave hydraulic circuit
  • Adjustable mechanical safety device
  • Adjustable recess for turntable installation
  • Suitable for small passenger cars through to SUVs
  • 3 year warranty

Additional information

Lifting Capacity

5500 kg
Lifting Height

2040 mm
Working Height

165 mm – 2040 mm
Minimum Height

165 mm
Motor Unit

3 kW
Voltage

3 Phase 50 Hz
Lifting/Lowering Time

45 seconds
Vehicle Type

Work Type

Videos

CM5500 Wheel Alignment Scissor Hoist Demo

Molnar CM5500 5.5 tonne wheel alignment scissor hoist lift
