CM350-LS – Mid-Rise Mobile Scissor Hoist 3.5 tonne
Description
The CM350-LS scissor hoist is mid-rise mobile scissor mounted giving a low profile of just 105mm with an excellent max working height of 1000 mm. The CM350-LS is a mobile scissor so it is not fixed to the ground and therefore movable.
This 3.5 tonne Mid-rise Scissor Hoist is suitable for workshops with limited space. It is ideal for tyre repairer and car body shops, as it allows easy and quick access to all sides of the vehicle.
The low profile platforms are ideal for lifting a large range of vehicles including low skirted sport cars.
For more information on scissor hoists, please complete the contact form below or call our customer service team.
Key Features
- Double master & slave hydraulic system, no compressed air or safety lock necessary
- Control box with push buttons, integrated pump unit and alarm signal
- Emergency lowering valves can be manually opened
- Sturdy scissor construction for high directional stability
- Ramps made from tear plates, for easy drive-on with wet wheels
- Mechanical synchronisation through cross bar

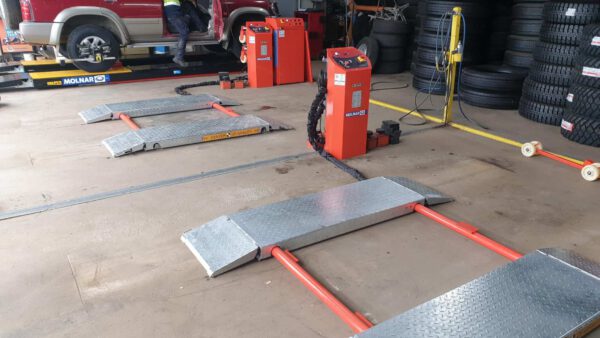

- Low minimum height of 105mm suitable for low vehicles and drive over situations.
- No fixed drive on direction, control box can be installed either side of scissors.
- Mobile kit delivered as standard consisting of rollers and handle for easy manoeuvrability of scissor
- 3 year warranty
Specification
| Lifting Capacity: | 3500 kg |
| Lifting Height: | 1000 mm |
| Working Height: | 105 mm – 1000 mm |
| Lifting/Lowering Time: | 16 seconds (approx.) |
| Motor Unit: | 2.2 kW |
| Voltage: | 230V 50Hz 1 Phase |
| Platform Length: | 1420 mm – 2100 mm |
| Platform Width: | 525 mm |
| Distance Between Platforms: | 900 mm |
| Minimum Height: | 105 mm |
Frequently Asked Questions about Mid rise Scissor Hoist
Placeholder
What is a mid rise scissor hoist?
A mid rise scissor lift is a machine used to raise vehicles when they need work to be carried out underneath. The mid rise scissor lift will give you more space beneath your vehicle than the low rise scissor lift.
These scissor lifts are adjustable and portable. Plus compared to 2 post hoist and 4 post hoist designs, they offer a smaller footprint and no side posts to clutter your work area.
Mid rise car lifts can facilitate the same repairs as low rise scissor lifts, such as wheel, tyre and brake repairs. However, because they lift your vehicle higher, mid rise car lifts are also ideal for more involved collision repairs and bodywork.
What is a mid-rise scissor lift used for?
