Description
The Bradbury 40SE is a reliable 4 tonne electro-hydraulic two post vehicle hoist.
Suitable for lifting most cars and small vans. Installation requires a 120mm 32 MPa floor and a minimum ceiling height of 3,800mm.

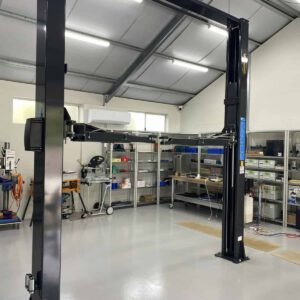

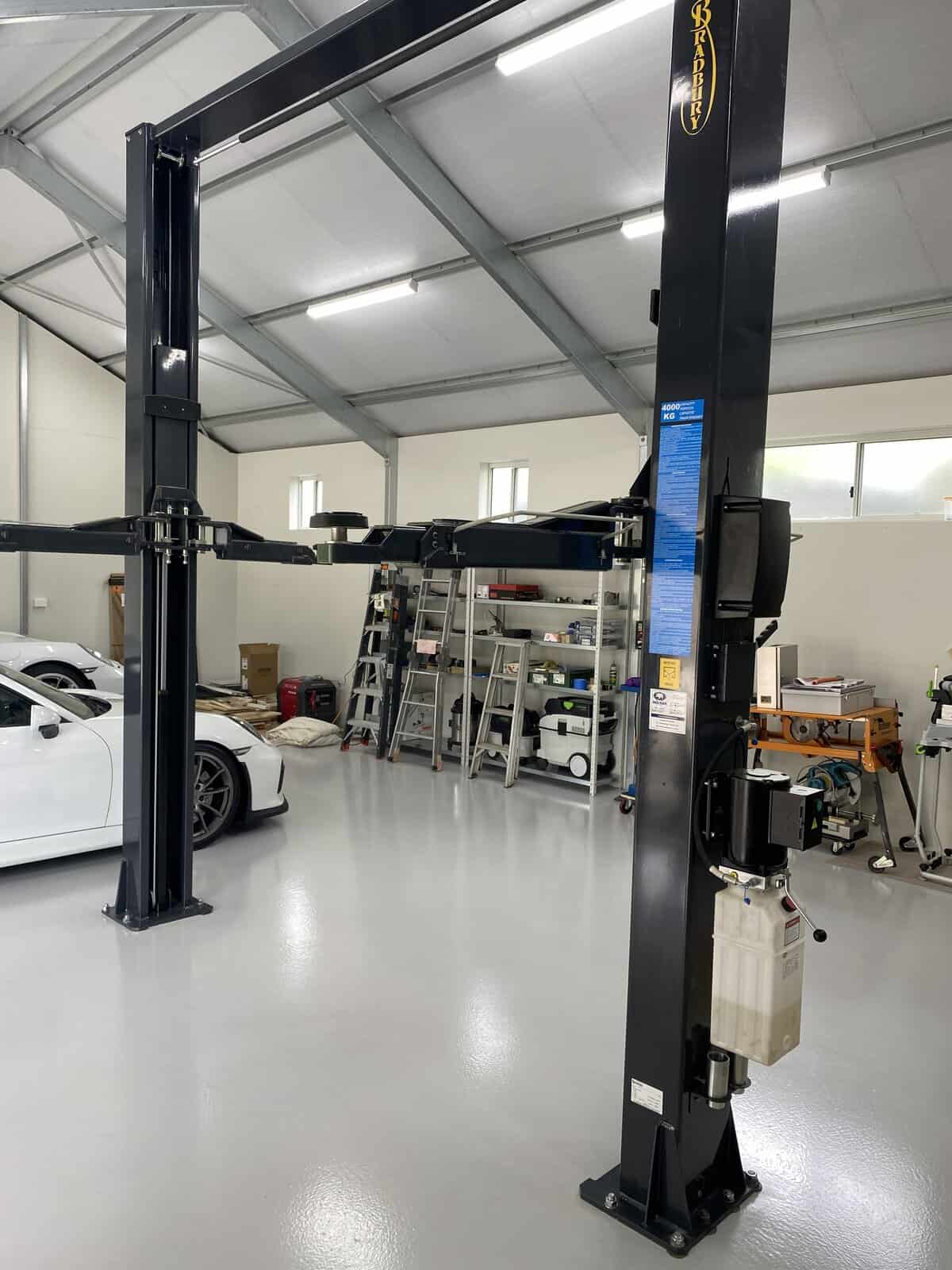

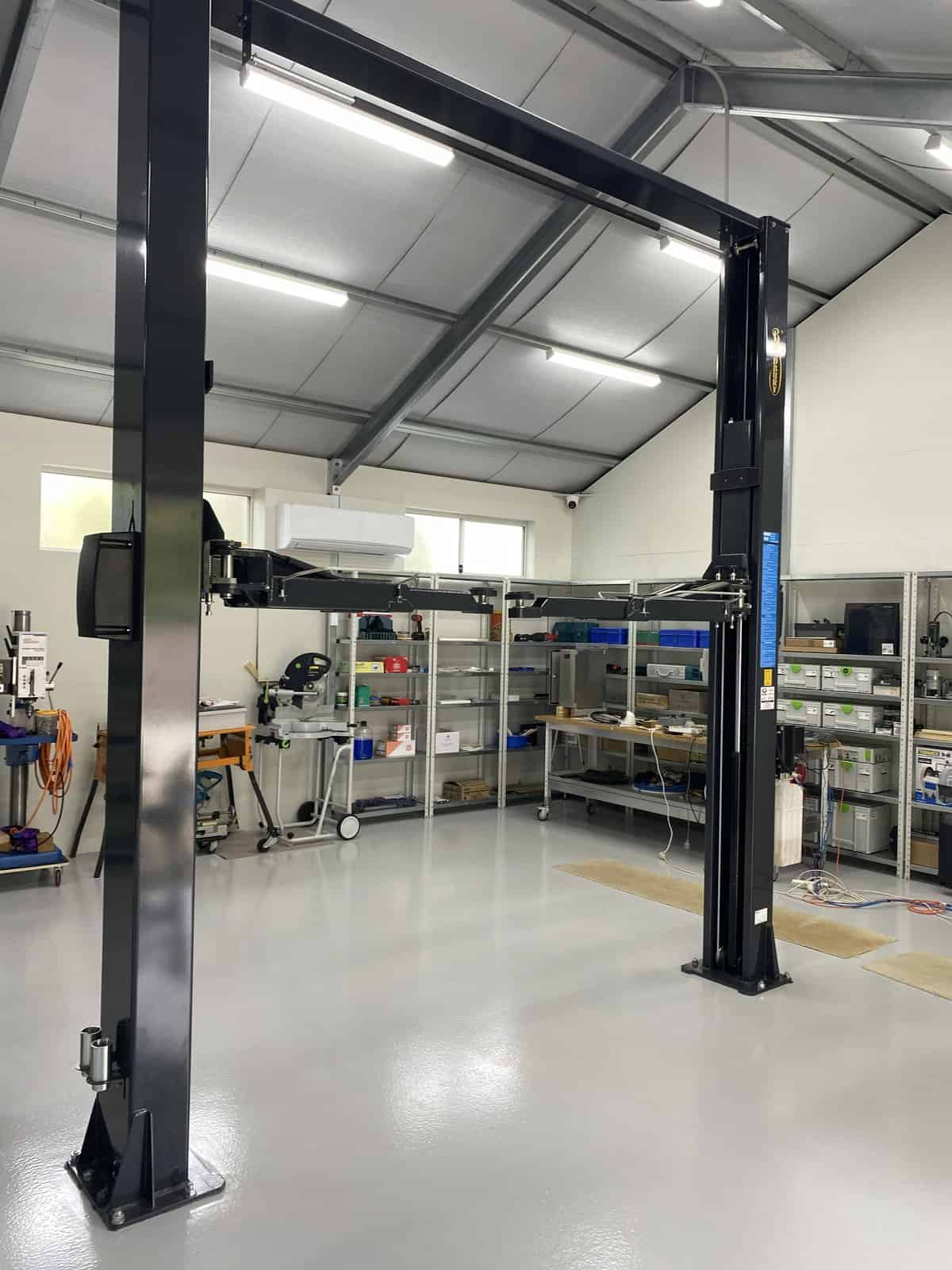

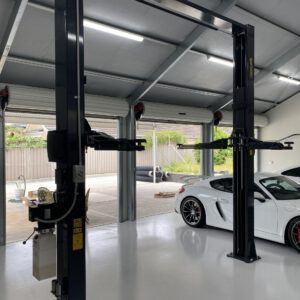

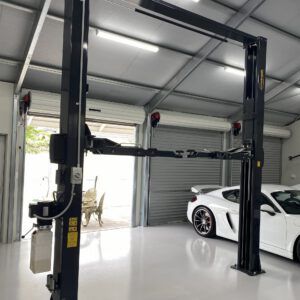

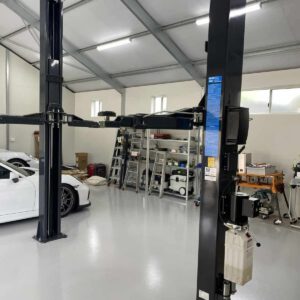

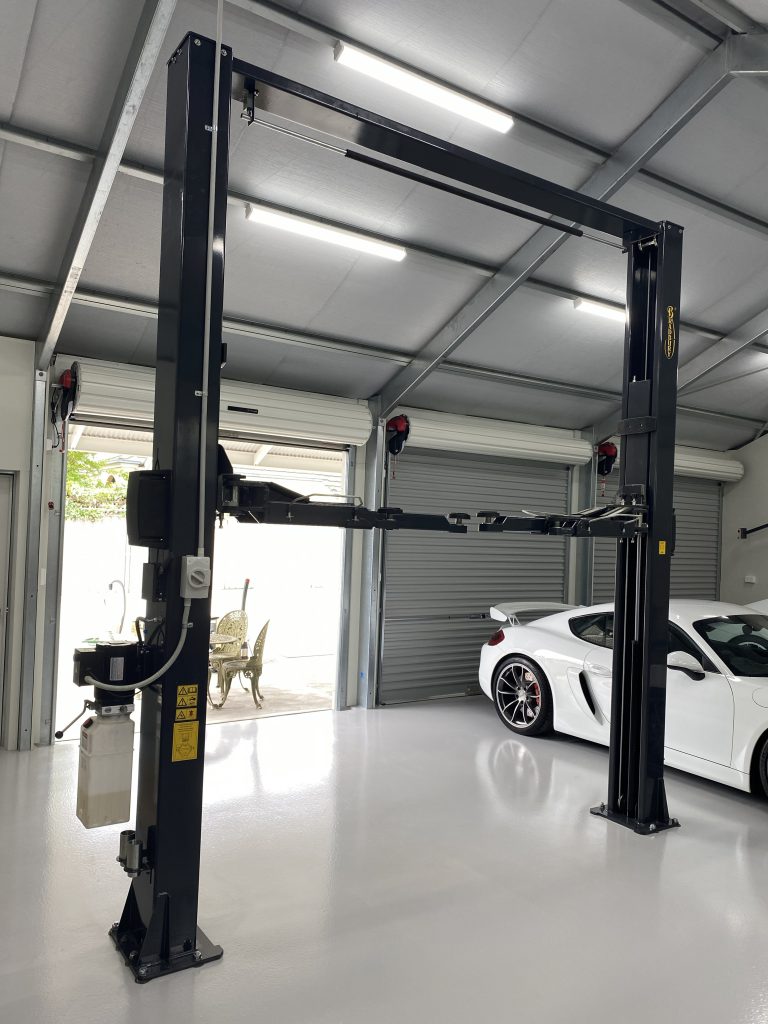

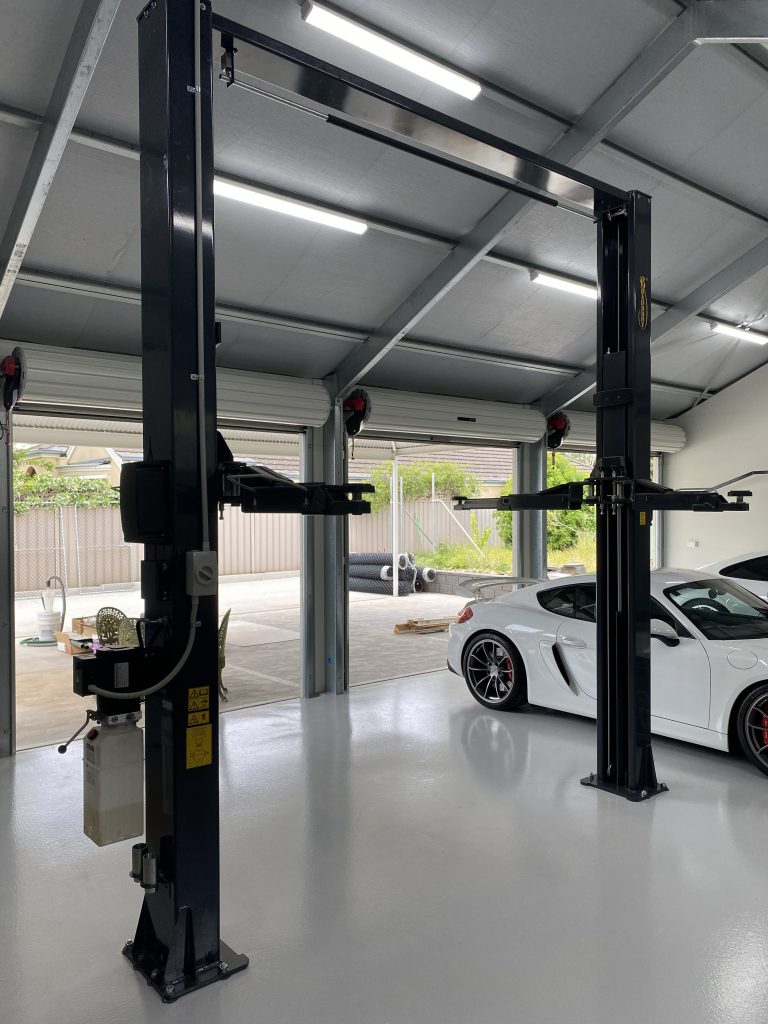

Bradbury 40SE – 2 Post Hoist 4 Tonne
40SE is a 2 post electro hydraulic hoist with 4 tonne lifting capacity.
Key Features
- Clear floor design
- 4 tonne lifting capacity
- Electro-hydraulic operation

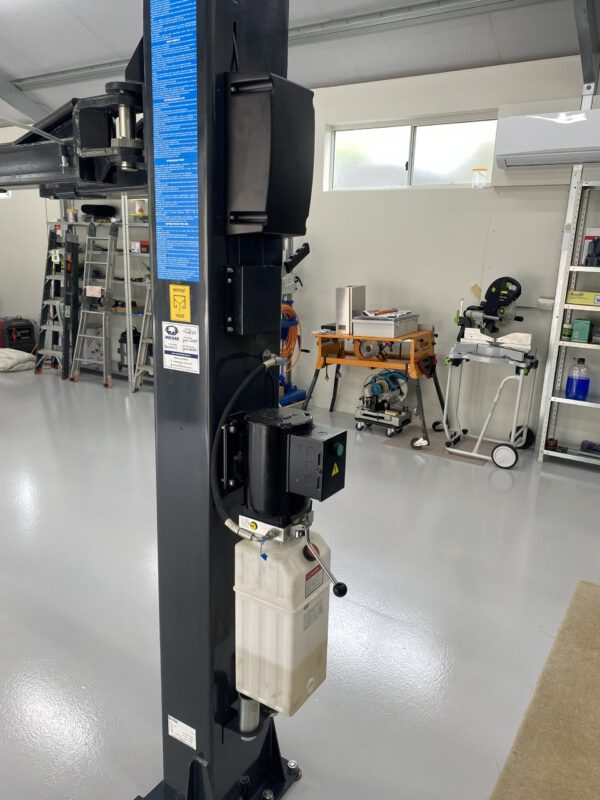

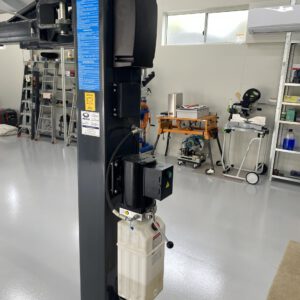

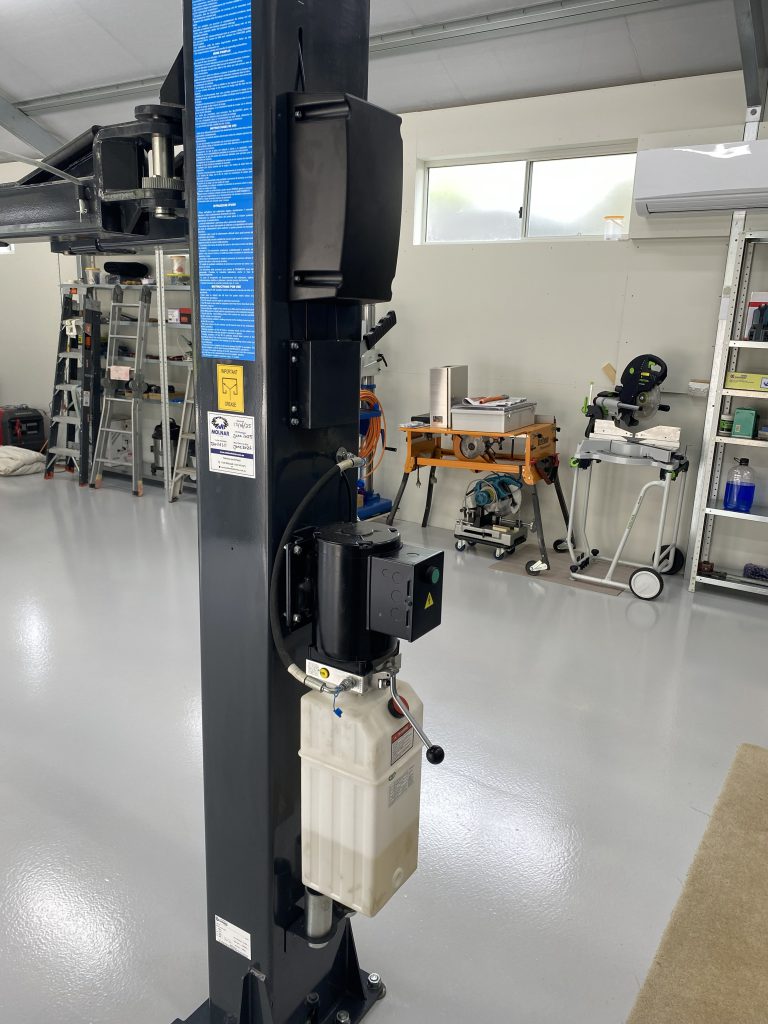

- Single hydraulic unit
- Safety ratchet system
- Automatic arm locking
- 3 year warranty
Additional information
| Lifting Capacity | 4000 kg |
|---|---|
| Lifting Height | 1950 mm |
| Working Height | 100 mm – 1950 mm |
| Lifting/Lowering Time | 35 seconds (approx.) |
| Motor Unit | 2.5 kW |
| Voltage | Three phase 2.2kW/10A (optional single phase, 20A) |
| Minimum Height | 100 mm |
| Drive-through Width | 2450 mm |
| Total Width | 3350 mm |
| Total Height | 3950 mm |
| Arm Length (Front) | 600 – 1200 mm |
| Arm Length (Rear) | 600 – 1200 mm |
| Vehicle Type | |
| Work Type | |
| Warranty | 1 year (maintenance contract required to validate) |
| Motor Unit | 2.2 kW |
| Minimum Height | 105 mm |
| Lifting Height | 1,942 mm |
| Working Height | 105 mm – 1,942 mm |
| Lifting/Lowering Time | 48 seconds up / 38 seconds down (3 phase) |
| Arm Length (Front) | 675 – 1,050 mm |
| Arm Length (Rear) | 825 – 1,275 mm |
| Floor Requirement | 120 mm, 32 MPa |
| Minimum Ceiling Height | 3,800 mm |
Bradbury 40SE – 2 Post Hoist 4 TonneBrochure
Bradbury 40SE – 2 Post Hoist 4 TonneUser Manual
Bradbury 40SE – 2 Post Hoist 4 TonneSpare Parts List
Bradbury 40SE – 2 Post Hoist 4 TonneTechnical Specifications
Bradbury 40SE – 2 Post Hoist 4 TonneTechnical Specifications
Bradbury 40SE – 2 Post Hoist 4 TonneTechnical Specifications
