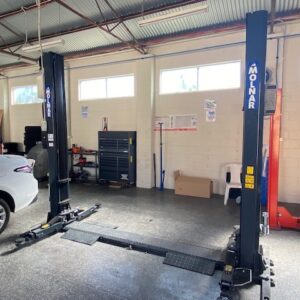

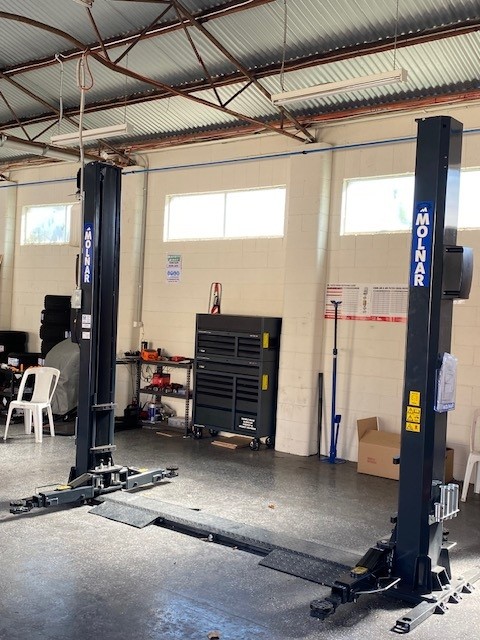

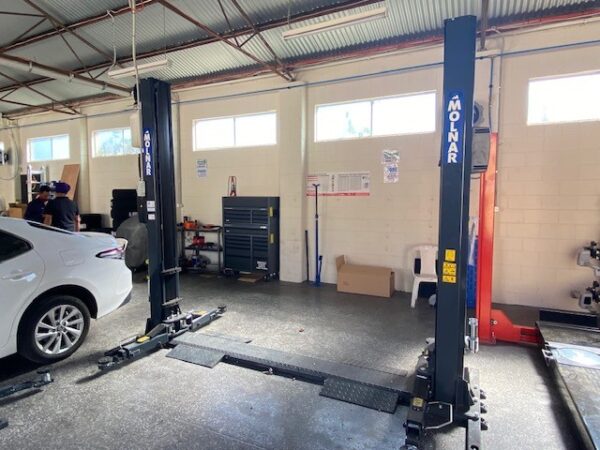

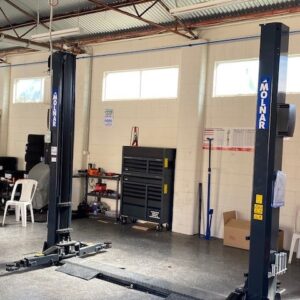

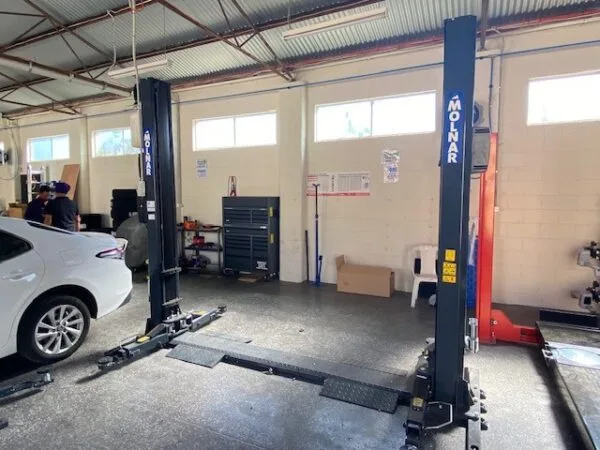

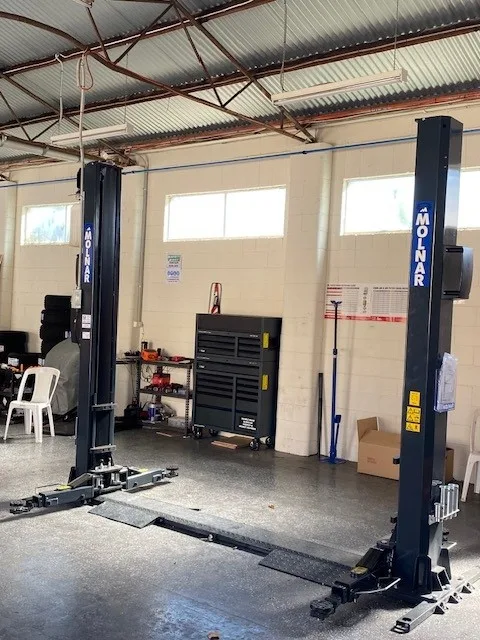

Molnar CM240B+ is a solid 4 tonne electro hydraulic two post hoist with a solid H-type baseframe. Suitable for cars and vans up to 4 tonne capacity (excluding LWB).
Molnar CM240B+ is a solid 4 tonne electro hydraulic two post hoist. It comes standard with a solid H-type baseframe. Installation requires a concrete depth of 120mm at 32 MPa. This 2 post base frame hoist is suitable for cars and vans up to 4 tonne capacity (excluding LWB).
This 2 post hoist comes with 3 stage front arms and 3 stage rear arms.
This 2 post hoist is electro-hydraulically operated and is available in single phase.
| Lifting Capacity | 4000 kg |
|---|---|
| Lifting Height | 1900 mm |
| Working Height | 120 mm – 1900 mm |
| Lifting/Lowering Time | 40 seconds (approx.) |
| Motor Unit | 2.2 kW |
| Voltage | 220/240V 1 Phase (20A isolator) |
| Minimum Height | 120 mm |
| Drive-through Width | 2400 mm |
| Total Width | 3300 mm |
| Total Height | 3900 mm |
| Arm Length (Front) | 550 – 1150 mm |
| Arm Length (Rear) | 550 – 1150 mm |
| Vehicle Type | |
| Work Type | |
| Warranty | 12 months parts and labour (maintenance contract required to validate) |
| Lifting Height | 1,967 mm |
| Minimum Height | 100 mm |
| Total Width | 3,520 mm |
| Distance Between Posts | 2,800 mm |
| Arm Length (Front) | 730 – 1,370 mm |
| Arm Length (Rear) | 730 – 1,370 mm |
| Concrete Requirement | 120 mm depth, 32 MPa |
