Asymmetric two post hoist with 4.5 tonne capacity. The asymmetric columns and arms give improved door clearance, and there is no base frame so the floor between the posts stays clear.

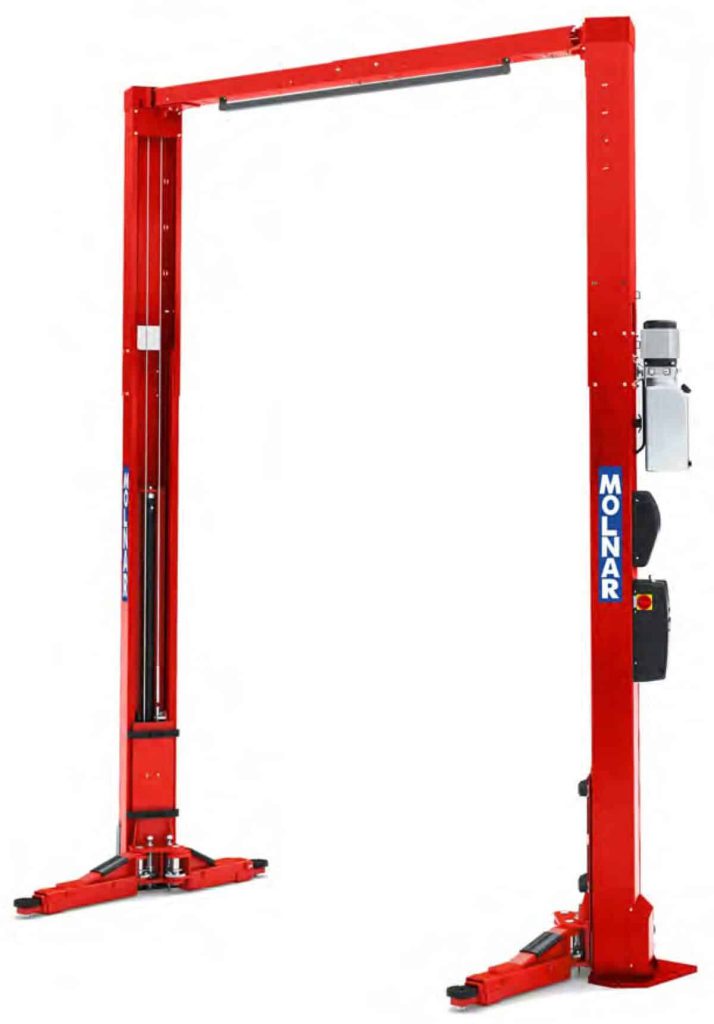

The Molnar CM245-AS two post car hoist is a asymmetrical 4.5 tonne electro-hydraulic two post vehicle hoist available with 3 phase or optional single phase motor power.
This hoist is suitable for vehicle repair and maintenance.
Its asymmetric column and arm geometry give improved door clearance for the driver and passenger.
For more information on 2 post car hoists, please contact our customer service team.
| Lifting Capacity | 4500 kg |
|---|---|
| Lifting Height | 1990 mm |
| Working Height | 1900 mm – 2013 mm |
| Lifting/Lowering Time | approx. 30 seconds |
| Motor Unit | 3.0 kW |
| Voltage | 3 Phase 50 Hz 7 Amps / 1 Phase 50 Hz 20 Amps |
| Minimum Height | 90 mm |
| Drive-through Width | 2160 mm (+ 250 mm optional) |
| Total Width | 3250 mm (+ 250 mm optional) |
| Total Height | 4220 mm or optional 3995 mm low setting |
| Arm Length (Front) | 600 – 1250 mm |
| Arm Length (Rear) | 600 – 1250 mm |
| Vehicle Type | |
| Work Type | |
| Workshop Constraint |
