Description

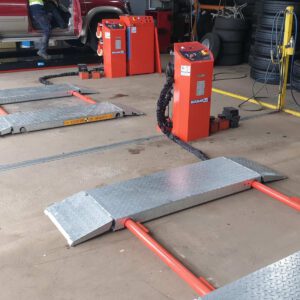

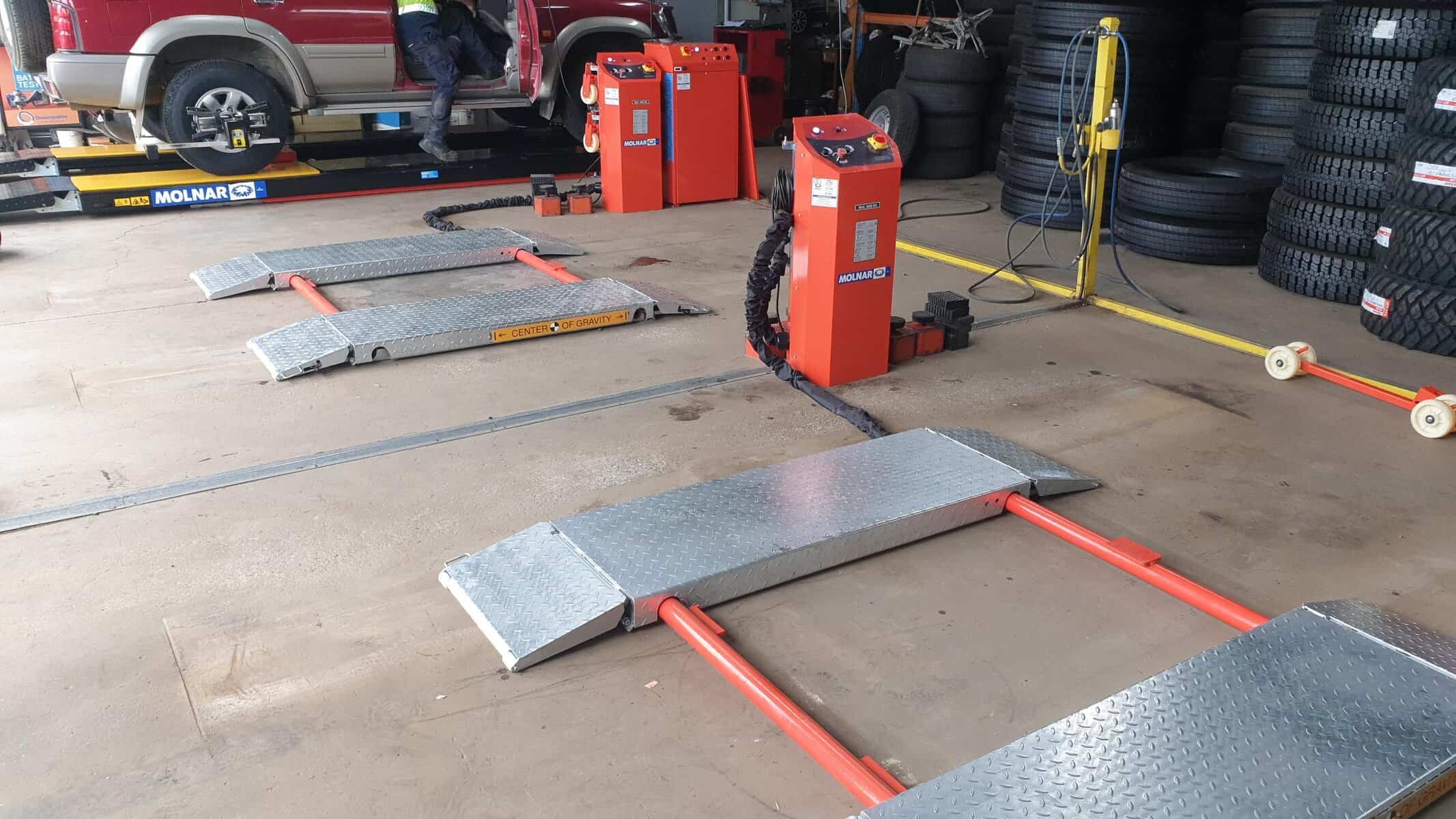

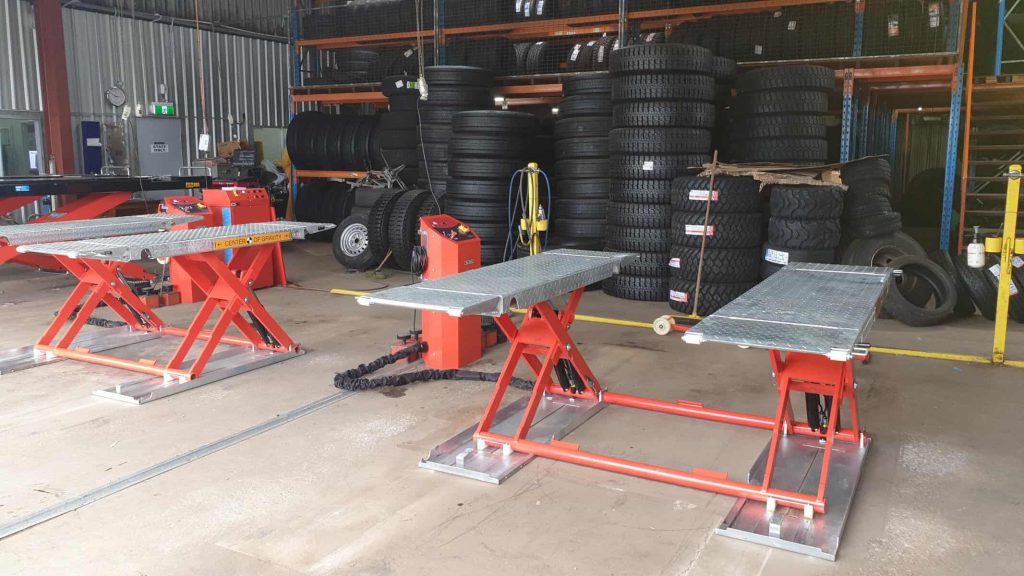

The CM350-LS is a mid-rise mobile scissor hoist. It sits just 105mm off the floor when lowered and lifts 3,500kg to a working height of 1000mm, with a full raise or lower taking approximately 20 seconds.
Moving it between bays
A mobile kit of rollers and a handle is delivered as standard, so the hoist is not fixed to the floor and can be repositioned as work demands. Move it only when unloaded, and position it on level, sound concrete before raising a vehicle.
What it suits
The 105mm lowered height suits low vehicles and drive-over situations. The scissors have no mechanical connection between them, giving clear access between the platforms, and the platforms are galvanised.

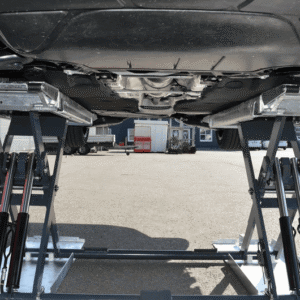

Vehicles are supported on their wheels on the platforms. Wheels-free work requires the optional rubber blocks, positioned at the vehicle manufacturer’s pick-up points. A cross bar for lifting 4×4 vehicles is also available.
Power
The CM350-LS runs a 2.2kW motor on a 230V 50Hz single phase supply. Unlike most hoists in the range it is single phase only.
Warranty, parts and support
Covered by a 3 year warranty, with spare parts stocked locally in Australia for dispatch within 24 working hours. Validating the warranty requires proof of a current maintenance contract.
