Doubles parking in the same footprint, lifting 3,000kg with 2,140mm of clearance below. Installs above ground with no pit, and can share a column with adjacent units to fit more into limited space.

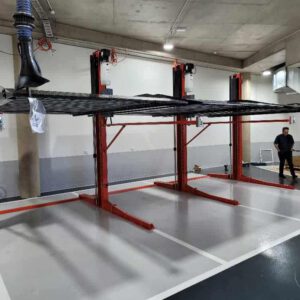

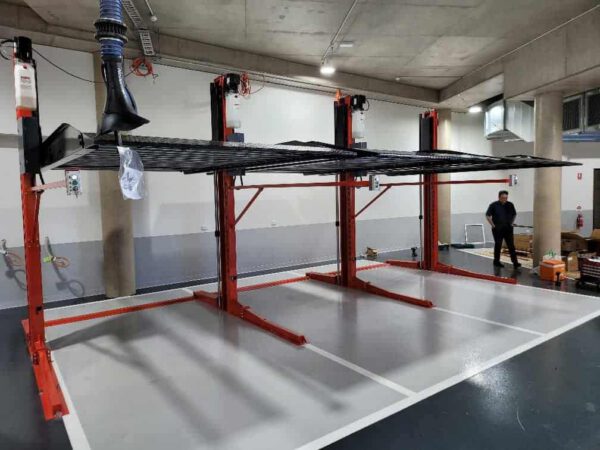

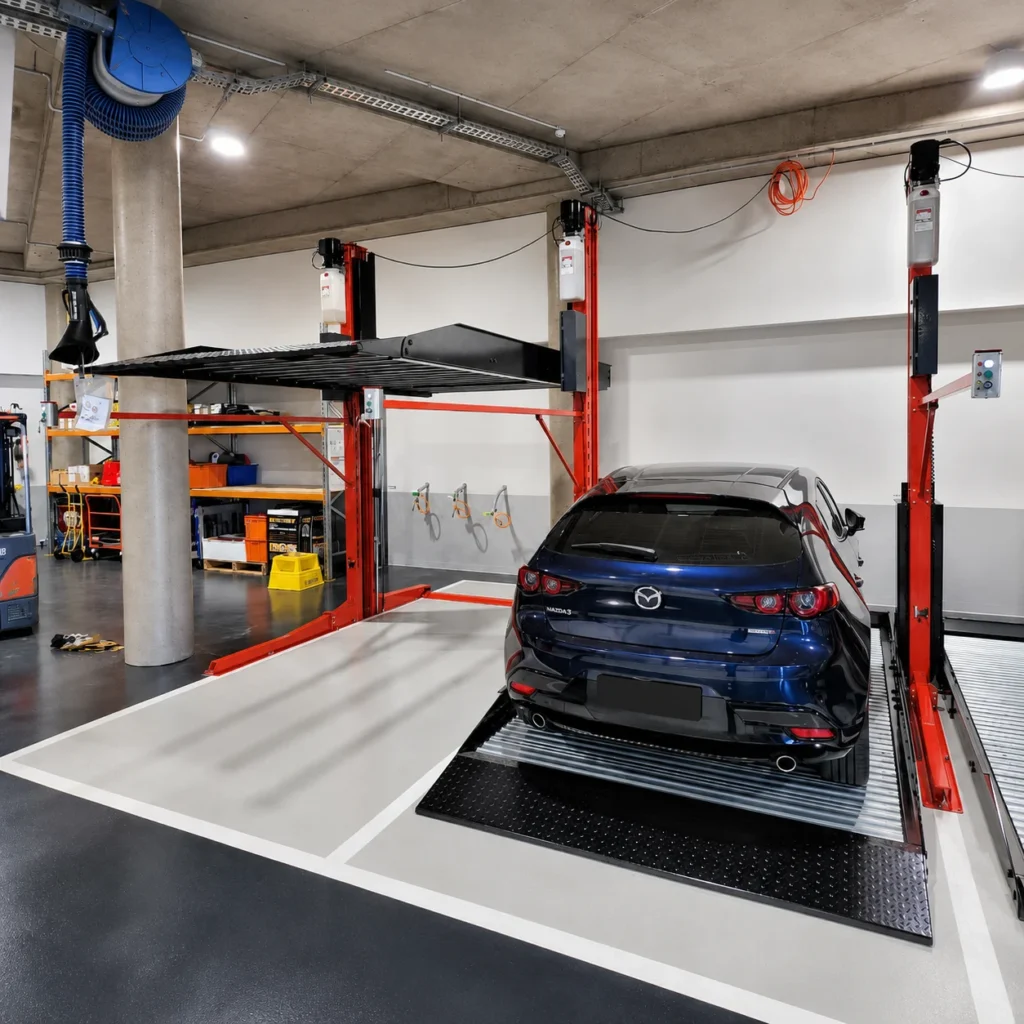

MOLNAR LASER-2.2 CP is a hydraulic 2-post premium car stacker which can work stand alone or multiple units with shared column.

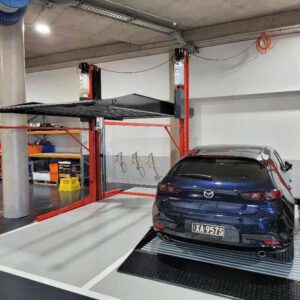

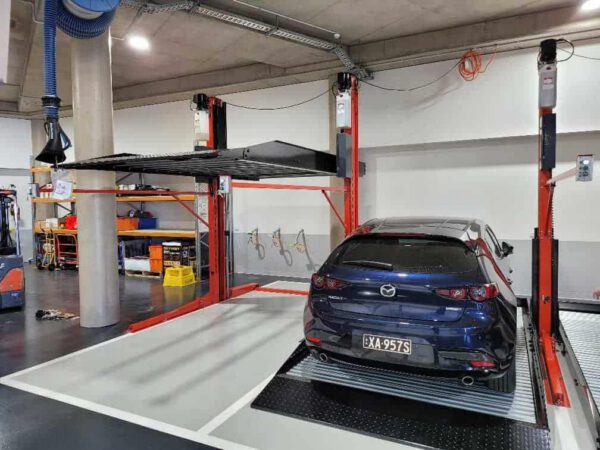

MOLNAR Parking car stacker system will create twice as much parking space. The car stacker serves as dependent parking. Space below has to be free to park on the platform above.
Ideal for car repair workshops, car dealerships, private car parking, car rental area and valet parking to maximise space and increase parking spaces.
| Lifting Capacity | 3,000 kg |
|---|---|

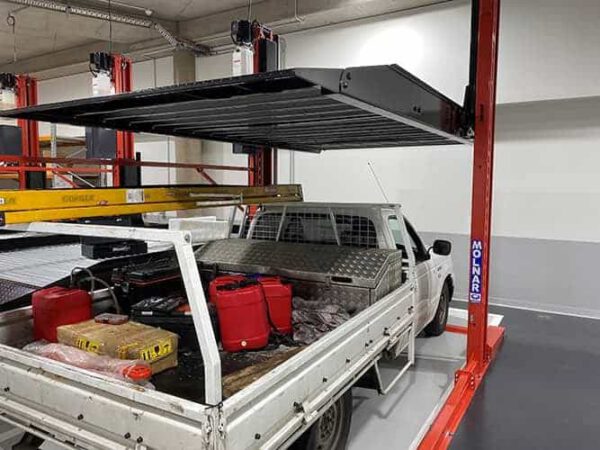

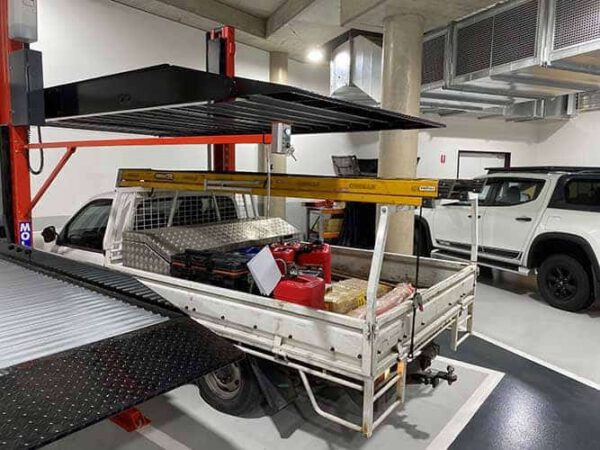

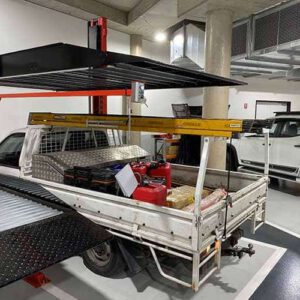

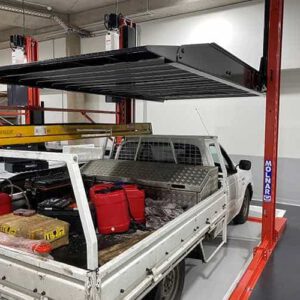

| Clearance Below | 2,140 mm |
| Overall Length | 4,274 mm |
| Overall Height | 3,510 mm |
| Overall Width | 2,618 mm stand alone / 2,453 mm sharing column |
| Platform Length | 4,175 mm |
| Platform Width | 2,244 mm |
| Clearance Between Columns | 2,288 mm |
| Lifting Time | 50 seconds |
| Warranty | 3 years (maintenance contract required to validate) |
| Spare Parts | National service network |
| Voltage | 415V 3 Phase + Earth 10A (Neutral not required) / Optional single phase 16A |
