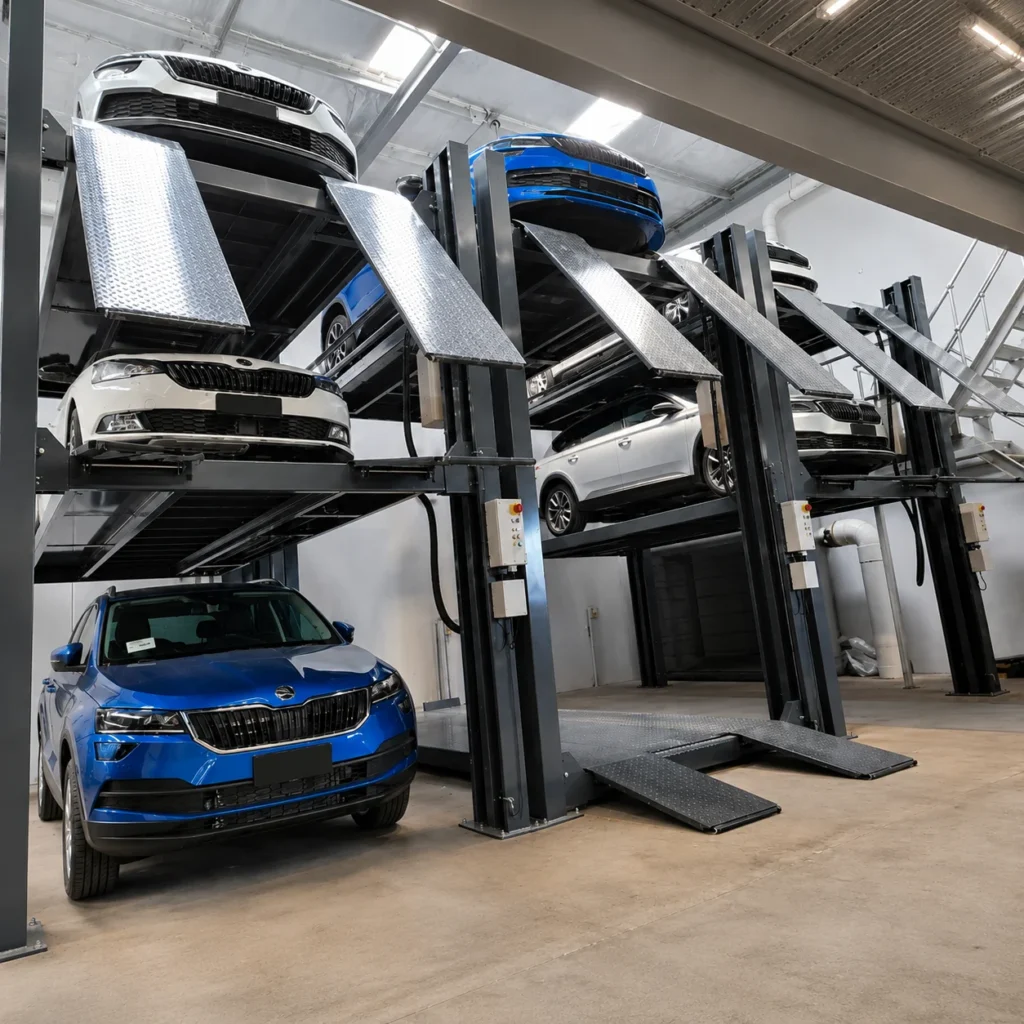

The LASER-4.3 CP is a 3-car stacking parking system that triples your parking capacity. Ideal for commercial buildings, apartment complexes, and space-constrained locations. It is a dependent system, so the space below must be clear before the platform above can be raised or lowered.
The LASER-4.3 CP is a 3-car stacking parking system that triples your parking capacity. Ideal for commercial buildings, apartment complexes, and space-constrained locations. It is a dependent system, so the space below must be clear before the platform above can be raised or lowered.
| Lifting Capacity | 3,000 kg per platform |
|---|---|
| Platform Width | 1,890 mm |
| Platform Length | 4,900 mm |
| Overall Height | 4,112 mm |
| Overall Width | 2,750 mm |
| Overall Length | 6,643 mm including run-ups |
| Voltage | 415V 3 Phase + Earth 10A (Neutral not required) / Optional single phase 16A |
| Clearance Between Columns | 2,340 mm |
| Lifting Time | 65 seconds |
| Concrete Requirement | 150 mm reinforced concrete, 25 MPa |
| Warranty | 3 years (maintenance contract required to validate) |
| Spare Parts | National service network |
