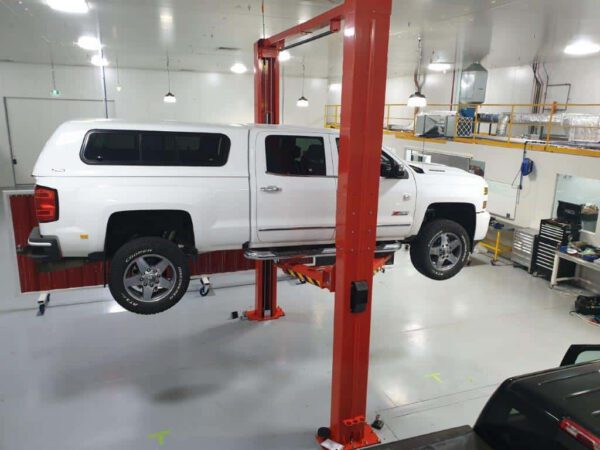

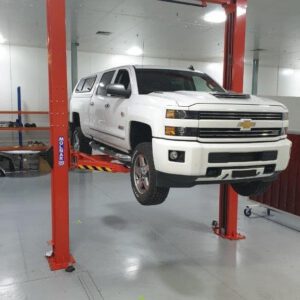

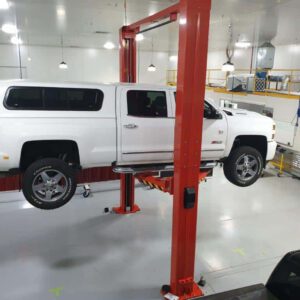

Molnar SM270 is a heavy duty 2 post universal car hoist with 7000kg lifting capacity, suitable for large vehicles and commercial workshops.
The Molnar SM270 is a universal 7 tonne electro-hydraulic two post vehicle hoist, available with three phase or optional single phase motor. This hoist is ideally suited for vehicle repair and maintenance within industrial, commercial or domestic workshops.
The post profile and large foot plate offer unrivalled stability for stronger, smoother operation. The double telescopic arm length makes the SM270 one of the most versatile on the market suitable for vehicles up to 7 tonnes.
| Lifting Capacity | 7000 kg |
|---|---|
| Lifting Height | 1885 mm |
| Working Height | 110 mm – 2000 mm |
| Lifting/Lowering Time | 65 seconds |
| Motor Unit | 4 kW |
| Voltage | 3 Phase 50 Hz 16A |
| Minimum Height | 105 mm |
| Drive-through Width | 2900 mm |
| Total Width | 3800 mm |
| Total Height | 4915 mm |
| Arm Length (Front) | 750 – 1500 mm |
| Arm Length (Rear) | 750 – 1500 mm |
| Vehicle Type | |
| Work Type |
